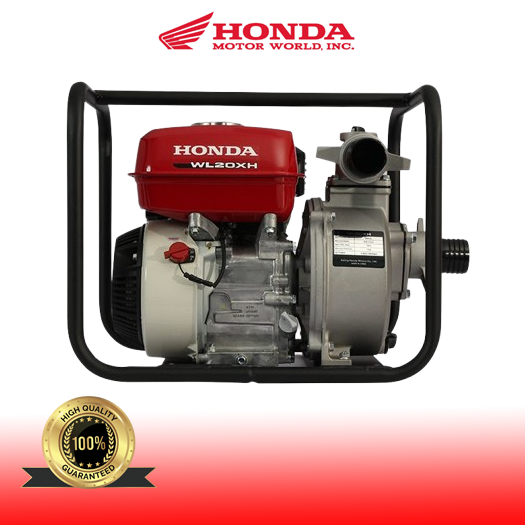

The WL20XH‑DR is a rugged, self‑priming centrifugal pump built for agricultural, construction, and general-purpose water transfer—ideal for high-elevation lift or drainage duties. It’s powered by Honda’s reliable GP160 OHV engine known for easy starts, dependable performance, and fuel efficiency.
| Weight | 24 kg |
|---|---|
| Dimensions | 49 × 38.5 × 41 cm |
| Pump Type: | Self‑priming centrifugal |
| Inlet/Outlet Size: | 2" × 2" (50 mm) |
| Max Discharge: | 670 L/min (~40 m³/h) |
| Total Head (Max Lift): | 32 m |
| Suction Head (Lift): | 7.5–8 m |
| Engine Model: | Honda GP160 (4‑stroke OHV, 163 cc) |
| Engine Power: | 3.6 kW (~5.5 HP) at 3,600 rpm |
| Start System: | Recoil (manual pull‑start) |
| Fuel Tank Capacity: | ~3.1 L |
| Fuel Consumption: | ~1.4 L/hr |
| Oil Capacity: | ~0.58 L |
| Dry Weight: | ~24 kg |
| Dimensions (L×W×H): | ~490 × 385 × 410 mm |
