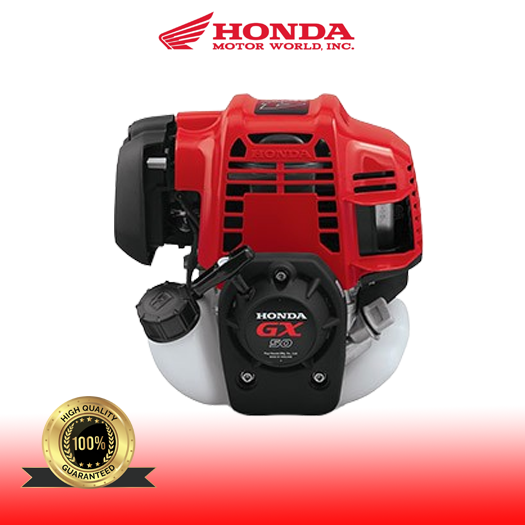

Honda’s GX50 general-purpose engine expands our Mini-Four Stroke lineup with a model that offers high output and light weight—extending into more demanding commercial and rental applications with excellent fuel efficiency. Featuring a compact and lightweight design, the GX50 is the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage.
| Weight | 4.13 kg |
|---|---|
| Dimensions | 19.9 × 26 × 26.3 cm |
| Engine Type: | Air-cooled 4-stroke OHC |
| Dry Weight: | 9.1 lb (4.1 kg) |
| Fuel Tank Capacity: | 0.67 U.S. qt (.63 liter) |
| Fuel: | Unleaded 86 octane or higher |
| Oil Capacity: | 4.4 US oz (130cc) |
| Air Cleaner: | Dry Paper |
| Governor System: | NA |
| Lubrication System: | Crankcase pressure–driven |
| Starting System: | Recoil |
| Ignition System: | Transistorized magneto |
| Carburetor: | Diaphragm-type (overflow return) |
| Compression Ratio: | 8.0:1 |
| PTO Shaft Rotation: | Counterclockwise (from PTO shaft side) |
| Net Torque: | 1.6 lb-ft (2.2 Nm) @ 5,000 rpm |
| Net Power Output*: | 2.0 hp (1.47 kW) @ 7,000 rpm |
| Displacement: | 47.9 cm3 |
| Bore x Stroke: | 43 mm x 33 mm |
| Dimensions: | Length (min) 7.8" (199 mm) |
