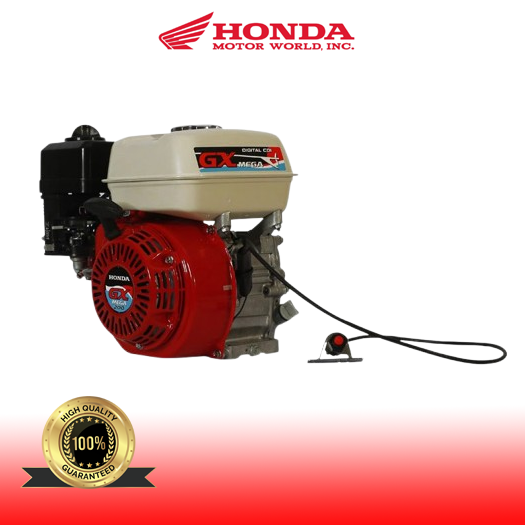

GX200T2-QBHB (MEGA MARINE)

GX200T2‑QBHB “Mega Marine” is a specialized Honda 196 cc engine designed for marine applications.

Weight	16 kg
Dimensions	37.6 × 31.2 × 34.6 cm
Engine Type & Configuration:	4‑stroke, OHV (overhead valve), single‑cylinder, air‑cooled Cylinder inclined at 25° for compactness
Displacement & Dimensions:	196 cm³ (12.0 cu‑in) Bore × stroke: 68.0 × 54.0 mm (2.68 × 2.13 in) Compact size: ~321 × 376 × 346 mm, weighs ~16 kg
Power & Torque:	Net output: 5.2 kW (7.1 PS) @ 4,500 rpm (SAE J1349 standard) Maximum torque: ~13.2 N·m @ ~3,000 rpm
Fuel, Tank & Efficiency:	Fuel: Unleaded gasoline, minimum 86 octane Fuel tank capacity: 3.1 L (0.82 US gal) Fuel consumption: ~1.7 L/hr at rated power
Lubrication & Ignition:	Forced splash lubrication Oil capacity: 0.60 L Transistorized magneto ignition (CDI-type)
Starting & Other Features:	Manual recoil starter Semi‑dry air cleaner Centrifugal governor for speed regulation PTO shaft approx. 19 mm diameter
Marine-Ready Enhancements:	Marketed under Honda’s “Mega Marine” line tailored for fishery and long‑tail boat use Equipped with integrated exhaust pipe suitable for marine setups
