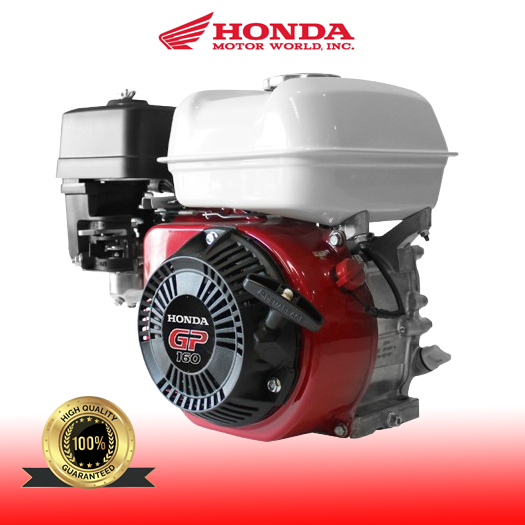

The Honda GP160H CH1 is a general-purpose, horizontal shaft, 4-stroke OHV engine, engineered for light-duty applications. It belongs to Honda’s GP Series, known for being cost-effective, reliable, and easy to maintain. The GP160 is often used in agricultural machines, small construction equipment, water pumps, and generators.
| Weight | 15.5 kg |
|---|---|
| Dimensions | 31.4 × 36.3 × 33.5 cm |
| Engine Type: | Air-cooled, 4-stroke, OHV, single cylinder |
| Mounting: | Horizontal shaft, base-mounted |
| Dry Weight: | Approx. 15.1 kg |
| Dimensions (LxWxH): | Approx. 312 x 362 x 346 mm |
| PTO Shaft Rotation: | Counterclockwise (from PTO shaft side) |
| Fuel Tank Capacity: | 3.1 liters (varies by application) |
| Model: | GP160H CH1 |
| Displacement: | 163 cm³ |
| Bore x Stroke: | 68 mm × 45 mm |
| Max Output: | Approx. 4.8 HP (3.6 kW) @ 3,600 rpm |
| Net Torque: | Approx. 10.3 Nm @ 2,500 rpm |
| Fuel System: | Carburetor |
| Ignition System: | Transistorized magneto ignition |
| Starting System: | Recoil start (manual) |
| Air Cleaner: | Dual element (foam + paper) |
| Oil Capacity: | 0.58 liters |
